Blue Sea 7543 C-Series Flat Rocker Circuit Breaker - Single Pole - 20A [7543]

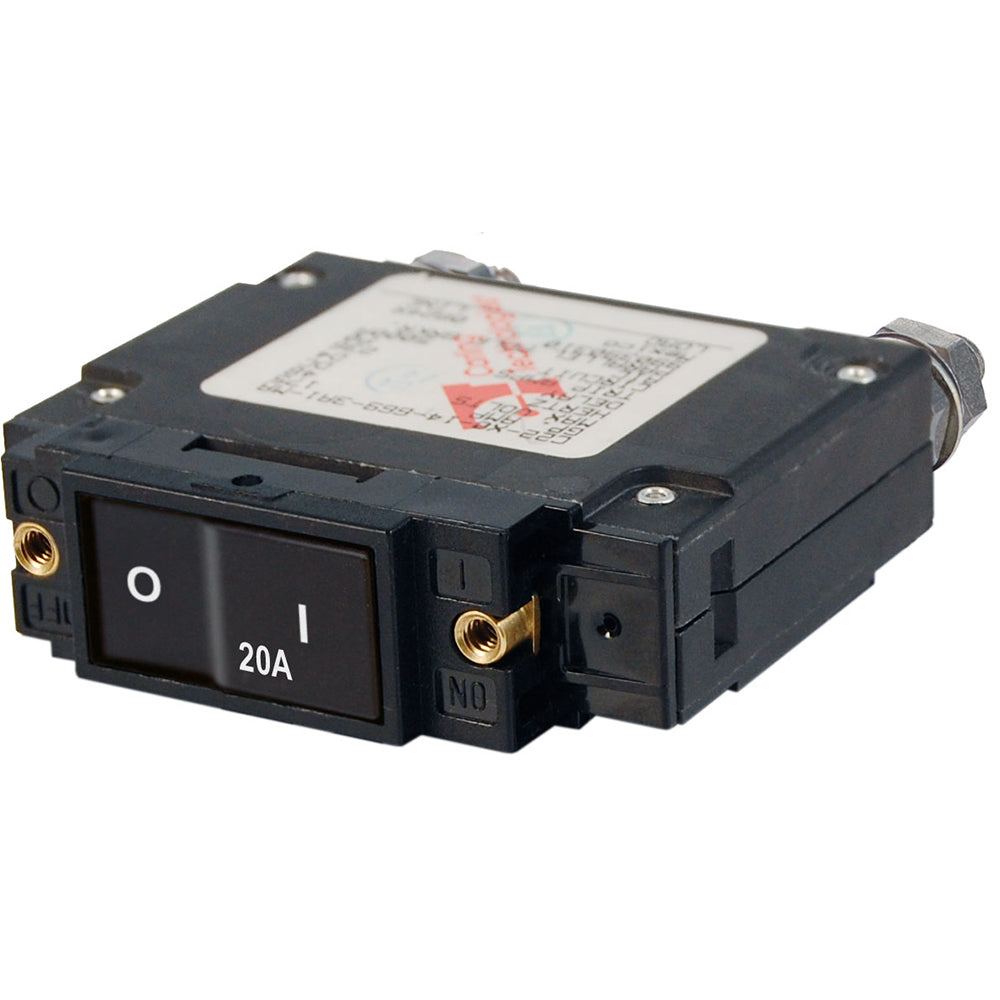

Blue Sea C-Series Single Pole 20A Flat Rocker Circuit Breaker

Features:

• The rocker actuator sits flush when 'ON', preventing accidental switching.

• The colored actuator clearly shows the 'OFF' position.

• It offers overcurrent protection for inverters, bow thrusters, and windlasses.

• Combines switching and circuit protection in one handy device.

• It's 'Trip Free', so it can't be forced closed after tripping.

• Ignition protected, making it safe for gasoline - powered boats.

Specifications:

• Amperage: 20A AC / 20A DC

• Actuator Style: Flat Rocker

• Poles: 1

• Max Voltage: 240V AC / 48V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Terminal Stud Torque: 35 in - lb (3.95 Nm)
• Interrupt Capacity: 3000A @ 120V AC / 3500A @ 240V AC / 5000A @ 32V DC

• Min Operating Temp: - 40°C

• Max Operating Temp: 85°C

• Mounting Screw: #6 - 32 Stainless Steel

• Mounting Screw Torque: 6 in - lb (0.68 Nm)

• Switching Cycles: 10000

• Terminal Stud: 1/4 - 20 Tin - Plated Brass

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp), known in California to cause cancer, birth defects, or other reproductive harm. For more info, go to P65Warnings.ca.gov.

Specifications:

• Amperage: 20a
• Box Dimensions: 2'H x 3'W x 4'L WT: 0.4 lbs
• UPC: 632085075439

Using this Blue Sea circuit breaker is a breeze. First, make sure you're working in a safe environment and the power is off. Mount the breaker using the #6 - 32 stainless - steel mounting screws and tighten them to 6 in - lb (0.68 Nm). Connect your wires to the 1/4 - 20 tin - plated brass terminal studs, torquing them to 35 in - lb (3.95 Nm). Once everything is connected, turn the power back on. The flat rocker actuator makes it easy to switch the breaker on and off. When the breaker trips, it's a sign that there's an overcurrent situation. Don't try to force it closed; instead, check for any faults in your electrical system. This breaker can operate in temperatures from - 40°C to 85°C, but try to keep it within a normal range for better performance. Remember, this product contains chemicals that can be harmful, so follow the California Proposition 65 warning. For long - term use, periodically check the connections to make sure they're tight and there's no sign of wear. Also, note that it has a switching cycle of 10000, so don't expect it to last forever. If you notice any issues, it might be time to replace it.
