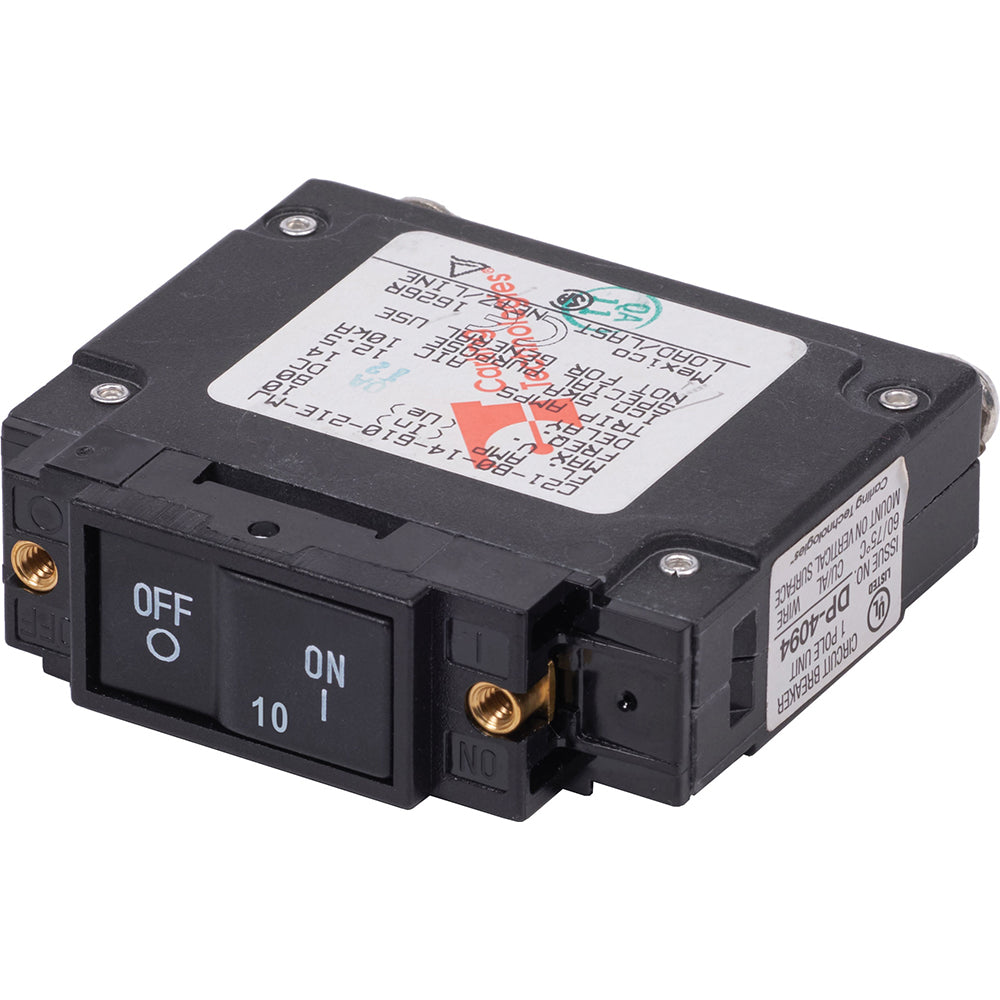

Blue Sea 7441 UL-489 Circuit Breaker - 10A Flat Rocker [7441]

Blue Sea 7441 UL-489 Circuit Breaker - 10A Flat Rocker

This circuit breaker is perfect for applications requiring UL-489 specifications, such as Navy, Army, Coast Guard vessels, and other vessels under CFR 46.

Key Features:

• 10A DC amperage
• Flat rocker actuator style
• Single pole design
• Max 80V DC voltage
• Magnetic hydraulic - Trip free circuit breaker type
• #10 - 32 screw tin - plated brass terminal type
• 10000A interrupt capacity

More Details:

• 10a amperage
• Box size: 2'H x 3'W x 5'L, Weight: 0.25 lbs
• UPC: 632085074418

Using this Blue Sea 7441 circuit breaker is straightforward. First, make sure your application requires UL - 489 specifications, like on certain vessels. Check the amperage of your circuit, as this breaker is rated for 10A DC. Connect it to your circuit using the #10 - 32 screw tin - plated brass terminals. When it comes to voltage, don't exceed 80V DC. As for safety, this breaker has a magnetic hydraulic trip - free design, which means it will automatically cut off the circuit if there's an overload. For maintenance, keep it clean and dry. Check the terminals regularly for any signs of corrosion. If you notice any issues or if the breaker trips frequently, it might be time to replace it. And always remember to refer to the UPC 632085074418 for product identification.
