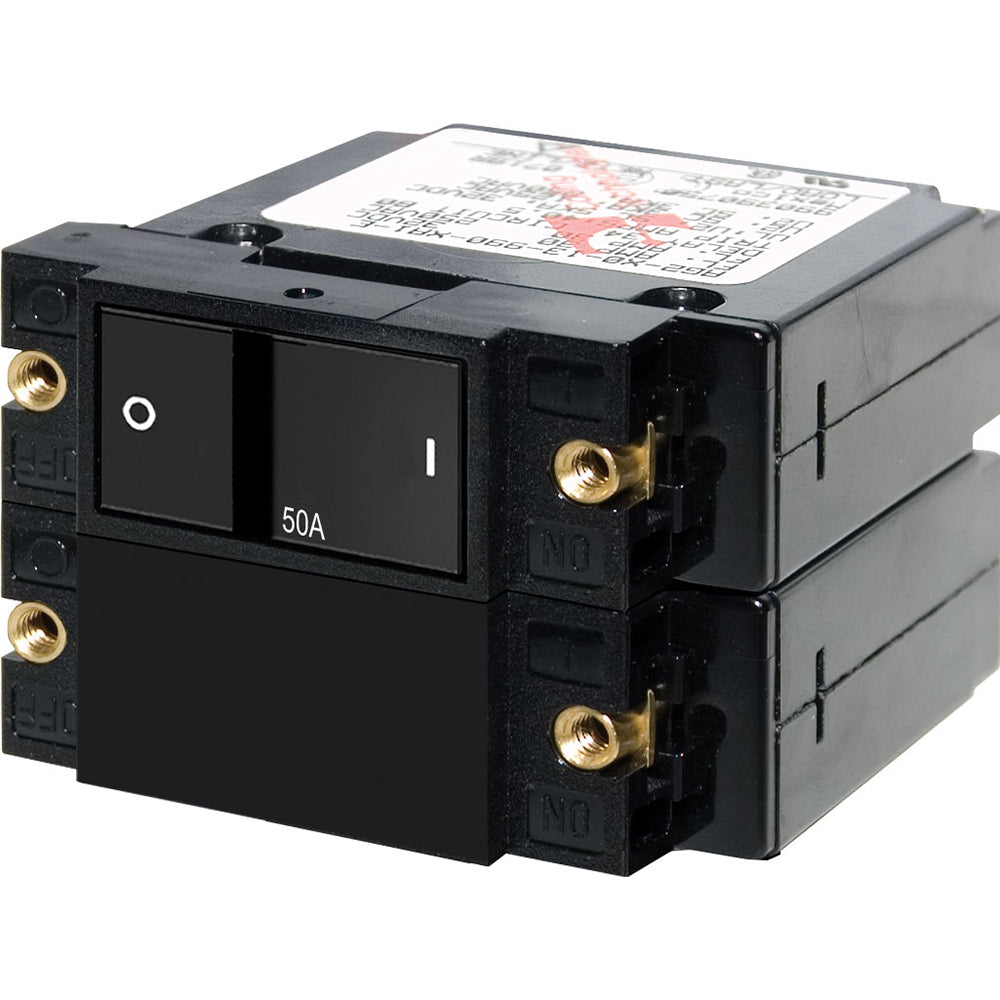

Blue Sea 7417 A-Series Flat Rocker Circuit Breaker - Double Pole - 50A [7417]

Blue Sea 7417 A-Series 50A Double Pole Flat Rocker Circuit Breaker

Key Features:

• The color actuator clearly shows the 'OFF' position, making it easy to operate.

• Its 'Trip Free' design ensures safety as it can't be forced 'ON' during a fault current.

• International ON/OFF symbols support both vertical and horizontal mounting for flexible installation.

Specifications:

• Amperage: 50A AC / 50A DC

• Actuator Style: Flat Rocker

• Poles: 2

• Maximum Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Minimum Operating Temperature: -40° C

• Maximum Operating Temperature: 85° C

• Mounting Screw: #6 - 32 Stainless Steel

• Mounting Screw Torque: 6 in - lb (0.68 Nm)

• Screw Terminal Torque: 14 in - lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10 - 32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

More Specs:

• Amperage: 50a
• Box Dimensions: 2'H x 3'W x 5'L WT: 0.4 lbs
• UPC: 632085074173

Using this Blue Sea 7417 A - Series circuit breaker is straightforward. First, decide on the mounting orientation - vertical or horizontal, thanks to the international ON/OFF symbols. Then, use the #6 - 32 stainless - steel mounting screws and tighten them to 6 in - lb (0.68 Nm) torque. Connect your electrical wires to the terminal screws (#10 - 32 stainless steel) and tighten them to 14 in - lb (1.58 Nm) torque. The color actuator will show you when the breaker is in the 'OFF' position. Remember, the 'Trip Free' design is there to protect you, so don't try to force it 'ON' during a fault current. This breaker can handle 50A AC or DC and has a maximum voltage range of 120V AC / 240V AC / 32V DC. It works well in temperatures from - 40°C to 85°C. As a maintenance tip, check the breaker regularly for any signs of wear or damage. If you notice any issues, it might be time to replace it. Also, be aware of the warning: this product can expose you to chemicals that may cause cancer, birth defects, or other reproductive harm. For more info, visit P65Warnings.ca.gov.
