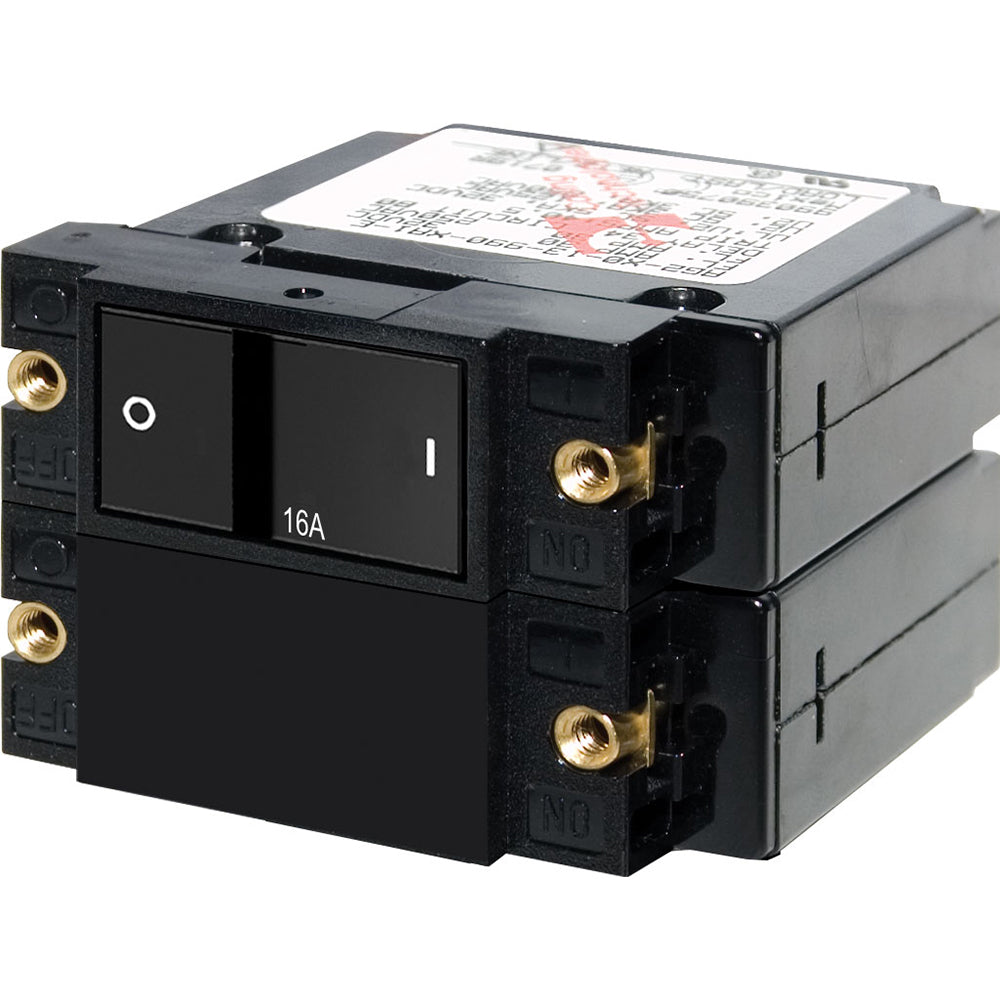

Blue Sea 7412 A-Series Flat Rocker Circuit Breaker - Double Pole - 16A [7412]

A-Series Flat Rocker Circuit Breaker - Double Pole - 16A

Features:
The color actuator clearly shows the 'OFF' position. It has a 'Trip Free' design, so it can't be forced 'ON' during a fault current. The international ON/OFF symbols allow for vertical or horizontal mounting.

Specifications:
Amperage is 16A for both AC and DC. It has a flat rocker actuator style, 2 poles, and a maximum voltage of 120V AC, 240V AC, or 32V DC. It's a magnetic hydraulic - trip free circuit breaker. The interrupt capacity is 3000A at 240V AC, 1500A at 240V AC [TUV], and 5000A at 32V DC. The operating temperature ranges from -40°C to 85°C. It uses #6 - 32 stainless steel mounting screws with a torque of 6 in - lb (0.68 Nm), and #10 - 32 stainless steel terminal screws with a torque of 14 in - lb (1.58 Nm). It can handle 10000 switching cycles and weighs 0.38lb (0.17 kg). The box dimensions are 2'H x 3'W x 5'L and it weighs 0.35 lbs, with a UPC of 632085074128.

WARNING: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp) which is known in California to cause cancer, birth defects or other reproductive harm. For more info, go to P65Warnings.ca.gov.

Using this Blue Sea circuit breaker is easy. First, make sure you've turned off the power supply. Then, install it following the correct polarity and use the appropriate mounting screws. You can mount it vertically or horizontally as the ON/OFF symbols support both. When the circuit has a fault current, the 'Trip Free' design will automatically cut off the power, so don't try to force it 'ON'. Check the color actuator to see if it's in the 'OFF' position. As for maintenance, keep it clean and dry. Avoid exposing it to extreme temperatures outside the -40°C to 85°C range. Also, be aware that this product contains chemicals that may be harmful, so handle it with care according to the warning.
