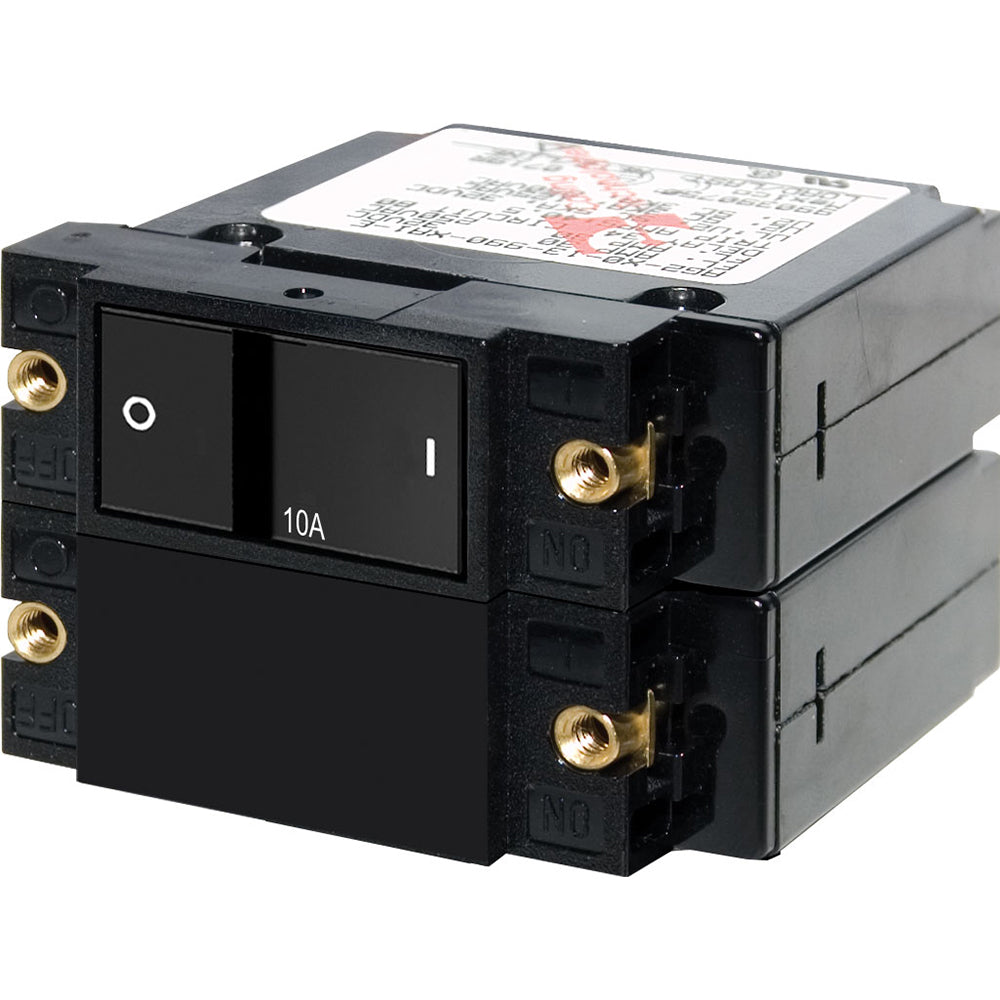

Blue Sea 7410 A-Series Flat Rocker Circuit Breaker - Double Pole - 10A [7410]

Blue Sea's A-Series 10A Double Pole Flat Rocker Circuit Breaker

Key Features:

• The color actuator clearly shows the 'OFF' position

• The 'Trip Free' design ensures safety, as it can't be kept 'ON' during a fault current

• International ON/OFF symbols allow for vertical or horizontal mounting

Specifications:

• Amperage: 10A AC / 10A DC

• Actuator Style: Flat Rocker

• Poles: 2

• Max Voltage: 120V AC / 240V AC / 32V DC

• Circuit Breaker Type: Magnetic Hydraulic - trip free

• Interrupt Capacity: 3000A @ 240V AC / 1500A @ 240V AC[TUV] / 5000A @ 32V DC

• Min Operating Temp: -40° C

• Max Operating Temp: 85° C

• Mounting Screw: #6 - 32 Stainless Steel

• Mounting Screw Torque: 6 in - lb (0.68 Nm)

• Screw Terminal Torque: 14 in - lb (1.58 Nm)

• Switching Cycles: 10000

• Terminal Screw: #10 - 32 Stainless Steel

• Weight: 0.38lb (0.17 kg)

WARNING: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp), known in California to cause cancer, birth defects or other reproductive harm. For more info, go to P65Warnings.ca.gov.

More Specs:

• Amperage: 10a
• Box Dimensions: 2'H x 3'W x 4'L, WT: 0.4 lbs
• UPC: 632085074104

Using this Blue Sea circuit breaker is straightforward. First, make sure to mount it properly according to the orientation you need - it can be vertical or horizontal. The international ON/OFF symbols make it easy to tell which way to switch. The color actuator shows when it's in the 'OFF' position, so you can quickly check the status. When it comes to maintenance, keep it in an environment within the temperature range of -40°C to 85°C. Check the mounting and terminal screws regularly to ensure they're tightened to the specified torque values. Remember, this product can expose you to certain chemicals, so handle it with care. If you notice the breaker tripping frequently, there might be a fault in the circuit that needs to be fixed.
