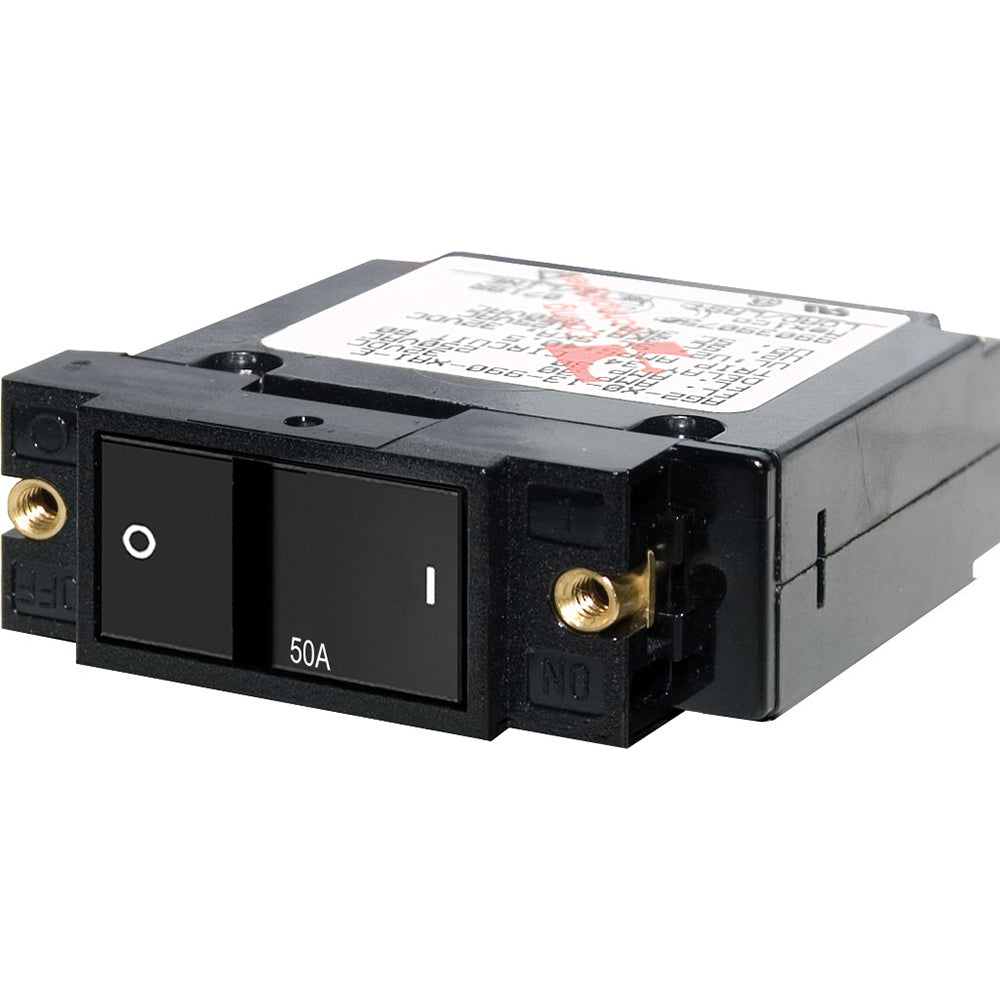

Blue Sea 7408 Single Pole Small Case 2 Flat Rocker Circuit Breaker - 50 Amp [7408]

The Blue Sea 7408 is a 50 Amp single pole small case 2' flat rocker circuit breaker. It features a color actuator that clearly indicates the 'OFF' position. With a 'Trip Free' design, it can't be forced 'ON' during a fault current. The circuit breaker is of the magnetic hydraulic - trip free type, with a maximum voltage of 250 Volts AC / 80 Volts DC and a rated switch cycles of 10,000 at rated amperage and voltage. The amperage is 50a, box dimensions are 1'H x 3'W x 4'L, and it weighs 0.2 lbs. The UPC is 632085074081. WARNING: This product can expose you to chemicals like di(2 - ethylhexyl)phthalate (dehp), known in California to cause cancer, birth defects or other reproductive harm. Check P65Warnings.ca.gov for more info.

Using this circuit breaker is straightforward. First, make sure the power is off before installation. Connect the wires according to the electrical requirements. The color actuator helps you easily tell if the breaker is in the 'OFF' position. During normal use, if there's a fault current, the 'Trip Free' design will automatically trip the breaker to protect your electrical system. Don't try to force it to stay 'ON' in case of a fault. As for maintenance, keep it clean and dry. Check the connections periodically to ensure they are tight. Remember, this product contains chemicals that may be harmful, so handle it with care and refer to P65Warnings.ca.gov for more safety information.
