Blue Sea 2312, 150 Ampere Common Busbar 20 x 8-32 Screw Terminal with Cover [2312]

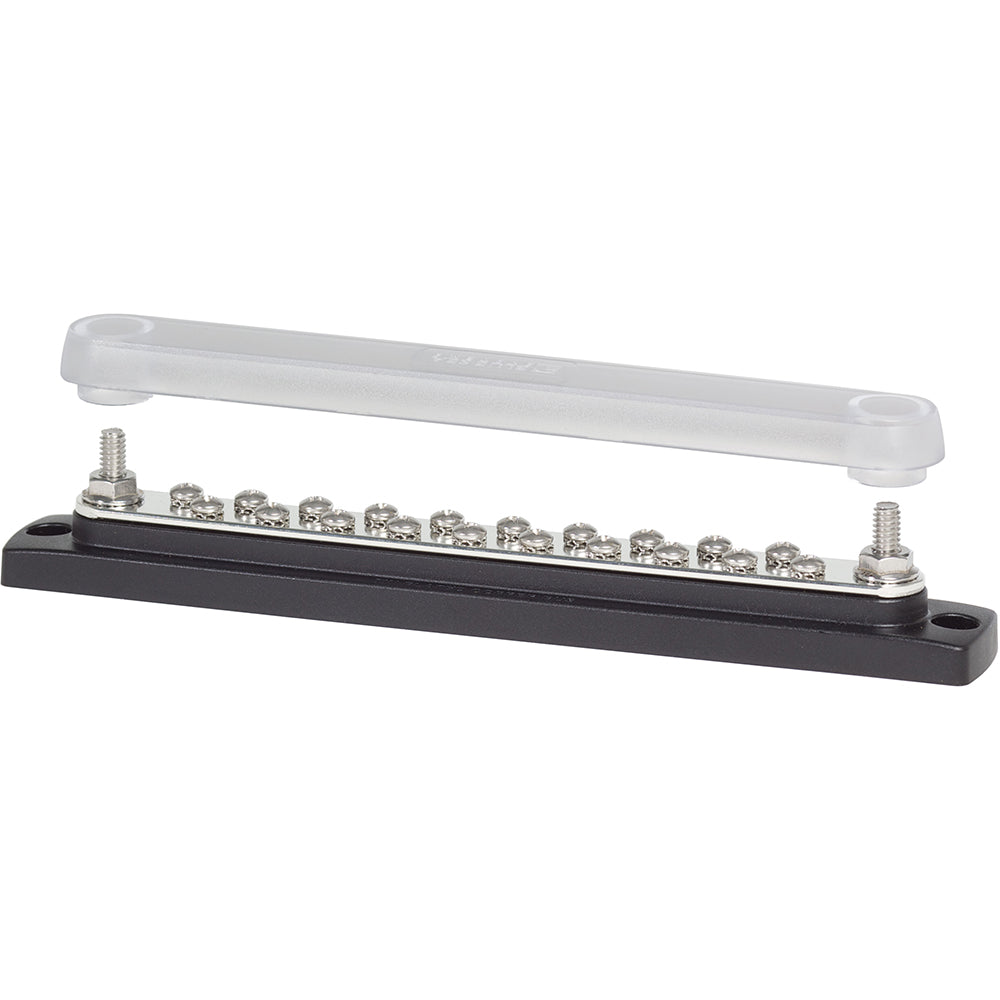

150 Ampere Common Busbar 20 x 8 - 32 Screw Terminal with Cover (PN: 2312)

This amazing busbar offers a low - resistance connection with its stud design. The stainless - steel studs and screws can handle high torquing, ensuring excellent electrical contact. The tin - plated copper bus provides maximum conductivity and strong corrosion resistance. Its UL 94 - VO rated base material can resist high heat. The press - on insulating cover attaches to studs and allows easy wire access. The raised bus makes it simple to connect multiple wires to a single screw.

Continuous Amperage	130 Amperes AC 150 Amperes DC
Maximum Voltage Rating	300 Volts AC 48 Volts DC
Bus Material	Tin - Plated Copper CDA 110/UNS11000
Base Material	Glass Reinforced Polycarbonate
Cover Material	Polycarbonate
Studs	Stainless Steel, 1/4'-20, torque 72 in - lbs, accepts 1/4' (M6) ring terminal
Screws	Stainless steel, #8 - 32 screw terminal, torque 18 in - lbs, accepts #8 (M4) ring terminal
Weight	0.58Lb

WARNING: This product can expose you to chemicals including di(2 - ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Using this Blue Sea 2312 busbar is easy. First, make sure you have the right tools like a torque wrench to set the studs and screws to the recommended torque. Attach your wires to the studs or screw terminals as needed. Remember to connect the press - on insulating cover to the studs to keep everything safe. When it comes to maintenance, check the electrical connections regularly to make sure they're tight and there's no sign of corrosion. If you see any rust on the tin - plated copper bus, clean it gently with a soft cloth. Also, be aware of the warning about the chemicals in the product. If you're in California, check P65Warnings.ca.gov for more details.
