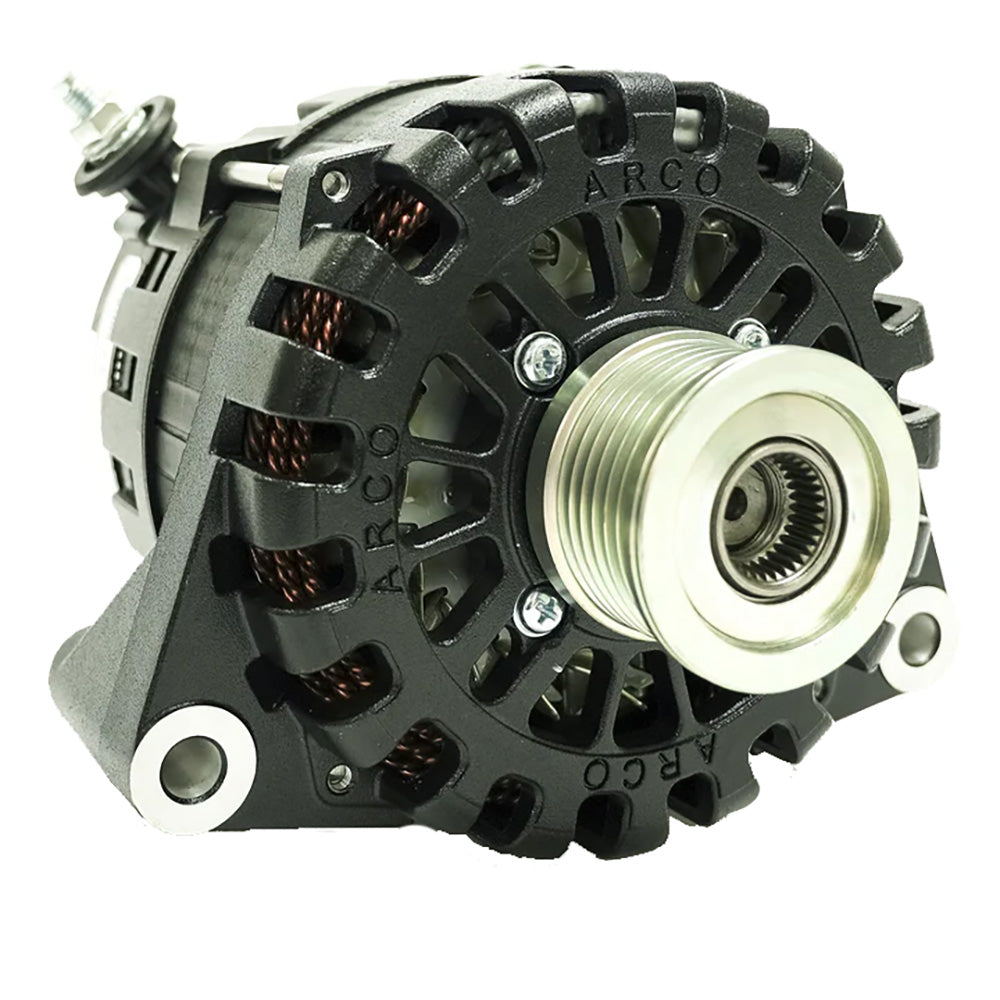

ARCO Marine Zeus A8000-48V 8kW N62 Alternator w/Clutch Pulley [4604]

Zeus A8000-48V 8kW N62 Alternator with Clutch Pulley

The ARCO Zeus A8000-48V alternator is a game-changer. It starts working at lower RPMs, runs cooler, and packs more power than those big and heavy 48V alternators. At 2,500 RPM, it continuously generates over 3kW (55 Amps), and at 4,000 Alternator RPM, it almost hits 6kW (111 Amps). In real life, a marine diesel engine charging at 1,200 RPM with a 3.13:1 pulley ratio can generate just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio can generate over 3kW (55 Amps)!

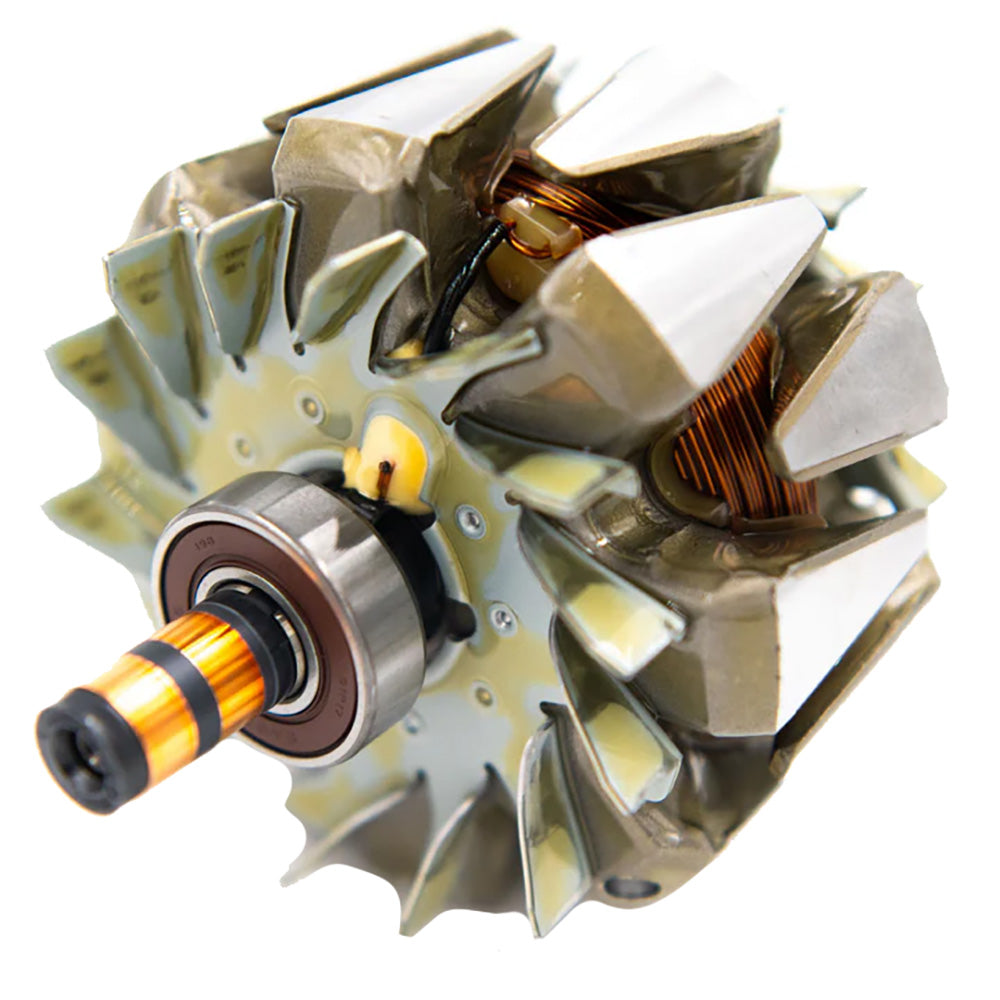

Many competitor alternators use 12V rotors for their 48V models, which is inefficient and limits output at all RPMs. In that case, your external smart regulator has to reduce the field a lot, up to 78%. If not done right, you could damage the unit and other system components. ARCO uses a native 48V rotor and field current, making our 48V alternator run cooler and last longer.

Features:

• Designed for high energy production.
• Great for marine, RV, military, and commercial use.
• Charges large battery banks quickly.
• Cool operating temperatures for better performance:
• Heat-shedding coatings

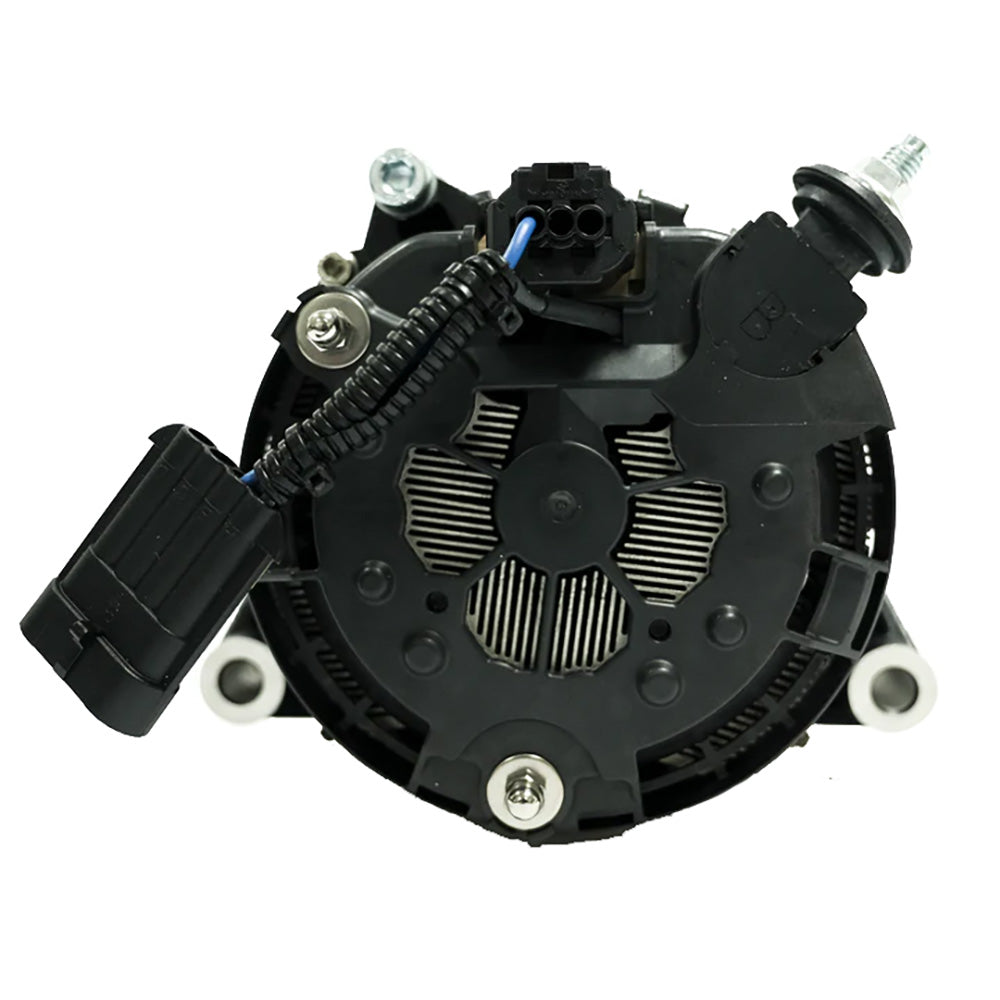

• Rectifier on the housing exterior
• Dual cooling fans
• OEM components
• Optimized for idle speed performance.
• Creates extra power with your engine, reducing the need for a generator.
• E-Coat/Cerakote keeps the high amp alternator cool for steady amperage output.
• Use the ARCO Zeus Bluetooth Alternator Regulator for top performance or lithium battery charging.
• SAE J1171 Certified.
• Proudly made in the U.S.A.

Technical Specifications:

• Voltage - 48v
• Field Type - P
• Rotor Poles - 16

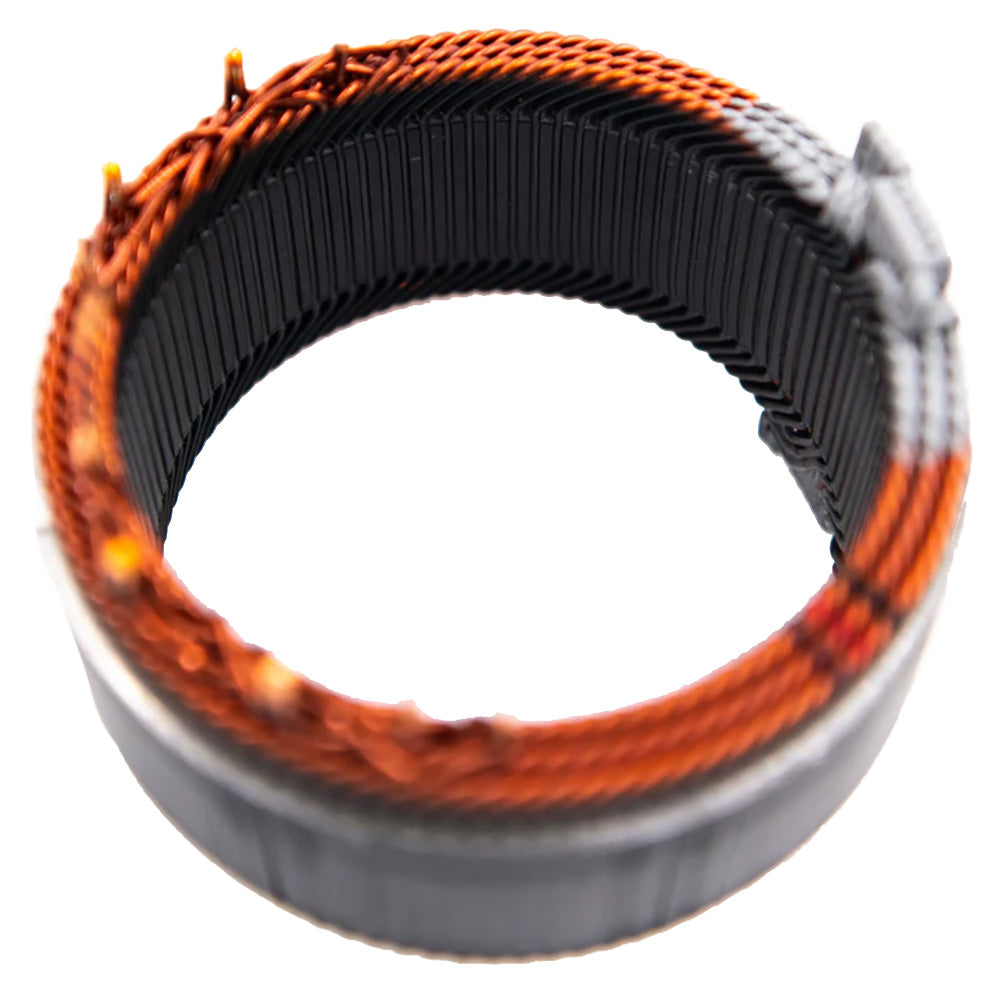

• Stator Size - 138mm
• Frame Size - Large
• Weight - 15.89lbs/7.2kg
• Regulation - External Only
• Finish - (Black) E-coating
• Cut-In RPM - 1,920 Alternator RPM
• Maximum Alt RPM - 19,000
• Battery Post - M8 Thread Post, Side Mount
• Standard Pulley - 49K6 (6-groove, 49mm)
• Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes - 6 positive, 6 negative, 80A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 53.5v - 180 Amps - 9,360 Watts – 14.8 kW PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v - 138 Amps - 7,383 Watts – 10.5 kW PTO
• Sustained Idle Output (Hot, 2,500 RPM) at 53.5v - 78 Amps 4,173 Watts – 6kW PTO
• Max Continuous Operating Temperature - 100°C / 212°F

Mounting Application:

• Replaces the factory dual alternator on many Sprinter RVs, including Roadtrek, Thor, Winnebago, and others. Suitable for all Mercedes Sprinter applications with the N62 option and meets current Mercedes Upfitter weight and PTO requirements.

- cis2:mm1pm5ht -
Quick Guide (pdf)
Brochure (pdf)

Using the ARCO Zeus A8000-48V 8kW N62 Alternator is easy. First, make sure it's properly mounted according to the mounting application details. For many Sprinter RVs, it can replace the factory dual alternator. Then, connect it to your system, following the electrical specifications. You can use the ARCO Zeus Bluetooth Alternator Regulator for the best performance, especially when charging lithium batteries. When using, keep an eye on the RPMs. The alternator starts working at 1,920 Alternator RPM and has different output levels at various RPMs. As for maintenance, check the cooling fans regularly to ensure they're working properly. The heat-shedding coatings and the rectifier on the housing exterior help keep the alternator cool, but it's still a good idea to make sure there's no blockage around them. Also, don't exceed the maximum continuous operating temperature of 100°C / 212°F. If you notice any unusual noises or performance issues, stop using it and check for problems. And always follow the safety guidelines to avoid damaging the unit and other components in your system.
