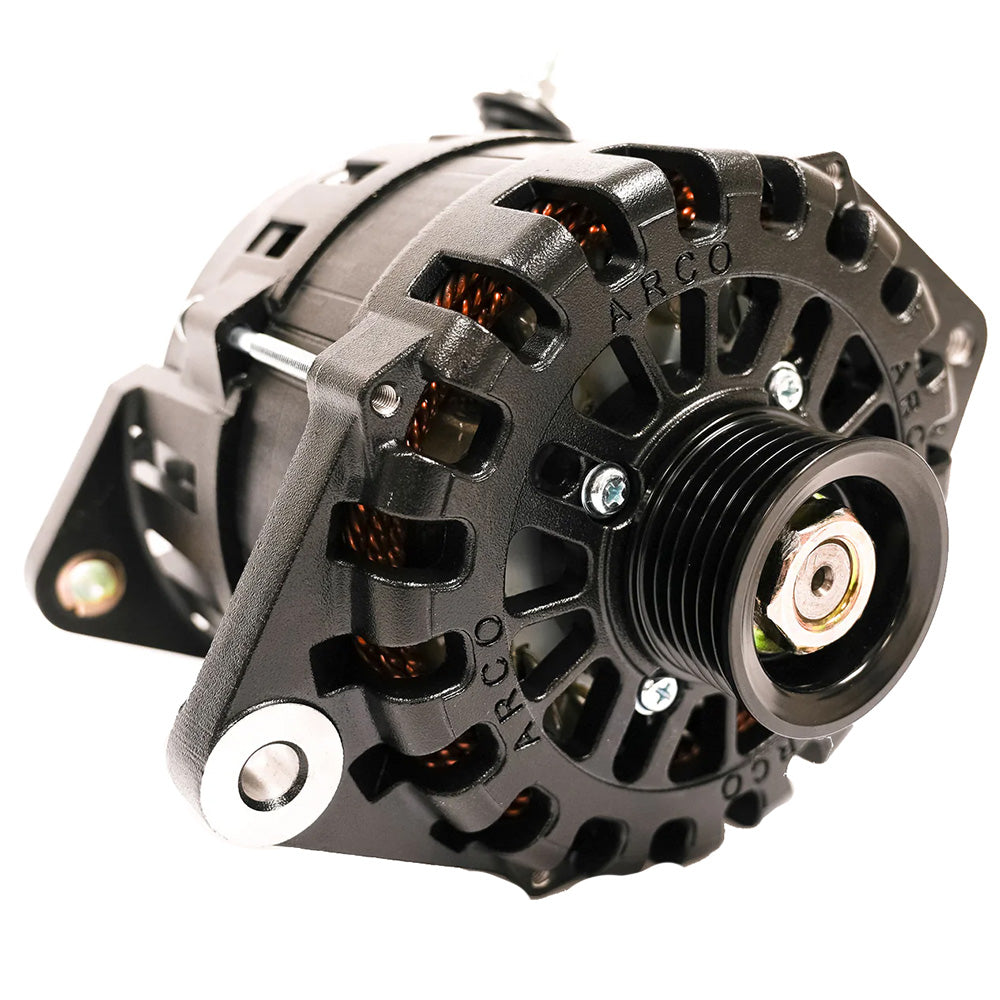

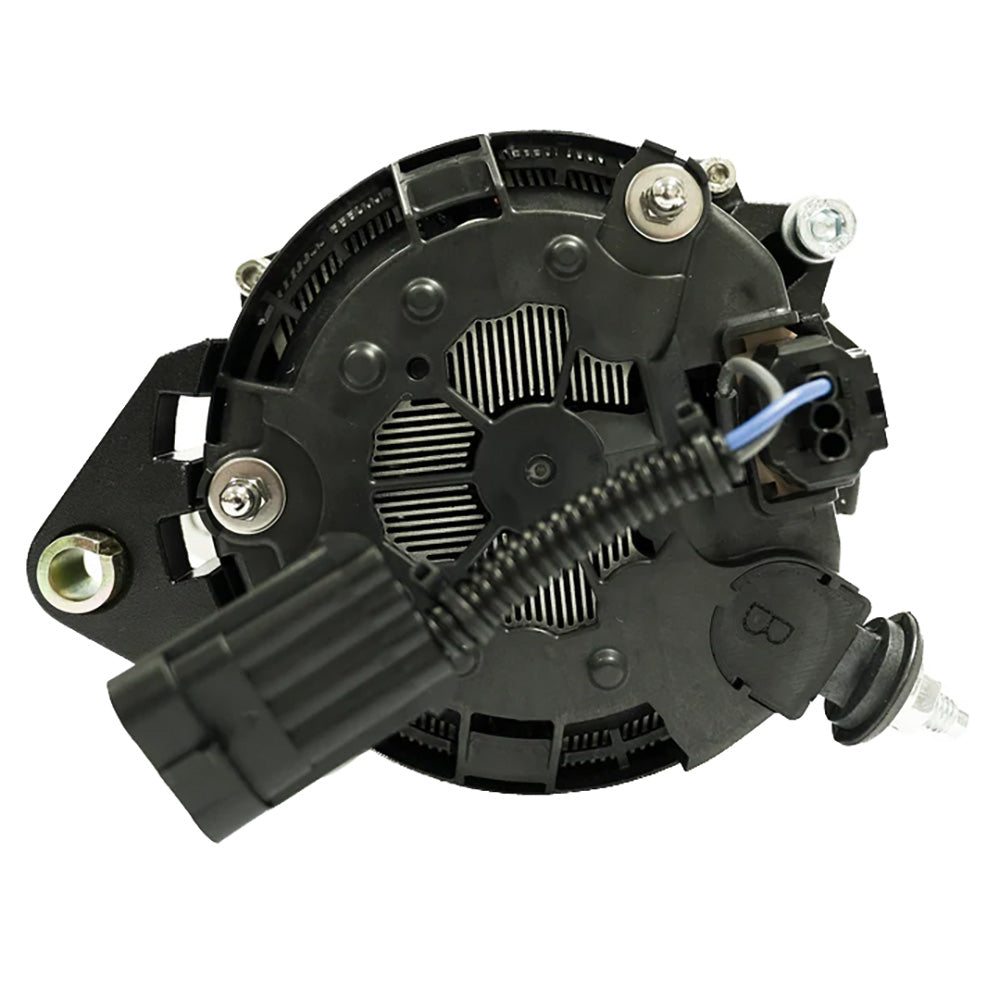

ARCO Marine Zeus A8000-48V 8kW 3.15 Alternator w/Isolated Ground (Common Rail) [4602]

Zeus A8000-48V 8kW Alternator with Isolated Ground: A Powerhouse for Your Needs

The ARCO Zeus A8000-48V alternator is a game-changer. It starts at lower RPMs, runs cooler, and offers more power than bulkier 48V alternators. At 2,500 RPM, it continuously generates over 3kW (55 Amps), and at 4,000 RPM, almost 6kW (111 Amps). In real-world use, a marine diesel engine at 1,200 RPM with a 3.13:1 pulley ratio can generate just over 5kW (97 Amps), and a Mercedes Sprinter at 750 RPM with a 3.21:1 ratio can generate over 3kW (55 Amps).

Unlike many competitors who use inefficient 12V rotors in their 48V alternators, ARCO uses a native 48V rotor and field current. This makes our alternator run cooler, extending its lifespan and reducing the risk of system damage.

Key Features:

• Designed for high energy production.
• Perfect for marine, RV, military, and commercial applications.
• Quickly charges large battery banks.
• Operates at cool temperatures for better performance: Heat shedding coatings, external rectifier, and dual cooling fans.
• Uses OEM components.
• Optimized for idle speed performance.
• Generates extra power with your engine, reducing the need for a generator.
• With E-Coat/Cerakote, it maintains high amp output by staying cool.
• Pair with the ARCO Zeus Bluetooth Alternator Regulator for top performance or lithium battery charging.
• SAE J1171 Certified.
• Made in the U.S.A.

Technical Specs:

• Voltage: 48v
• Field Type: P

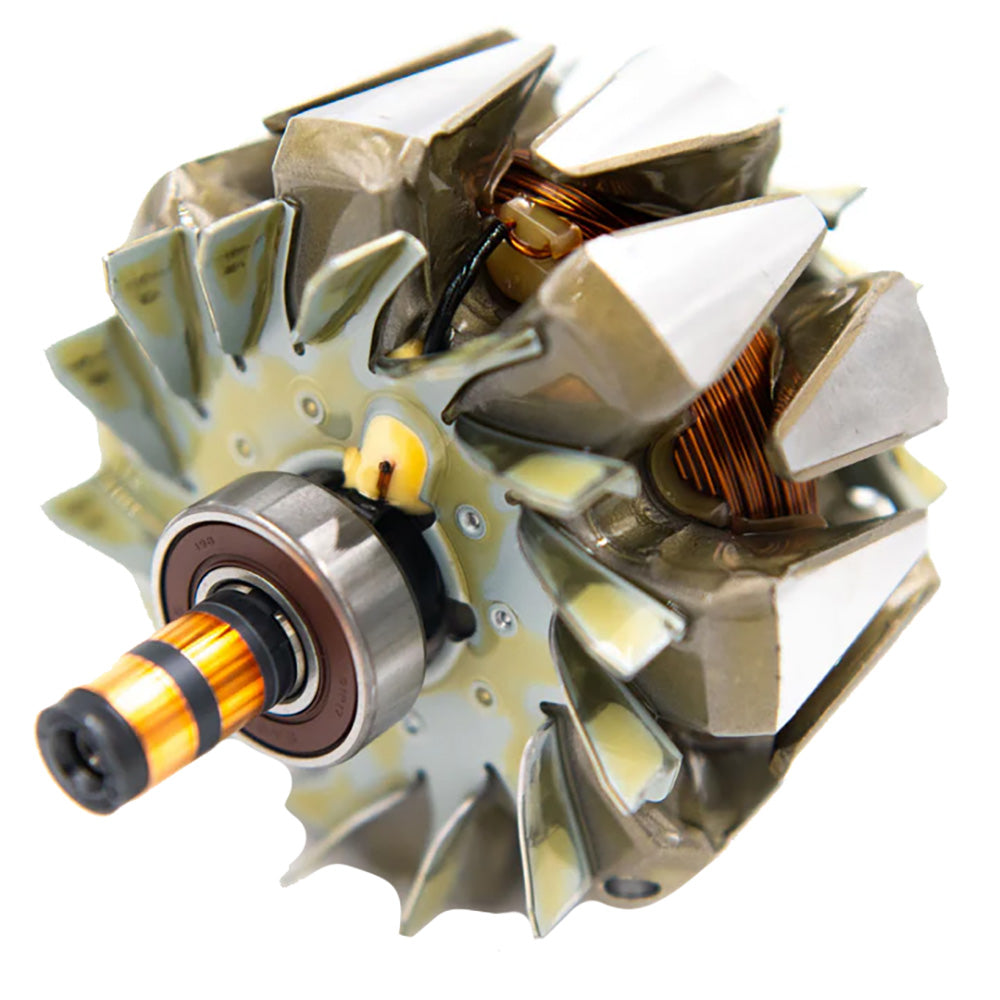

• Rotor Poles: 16

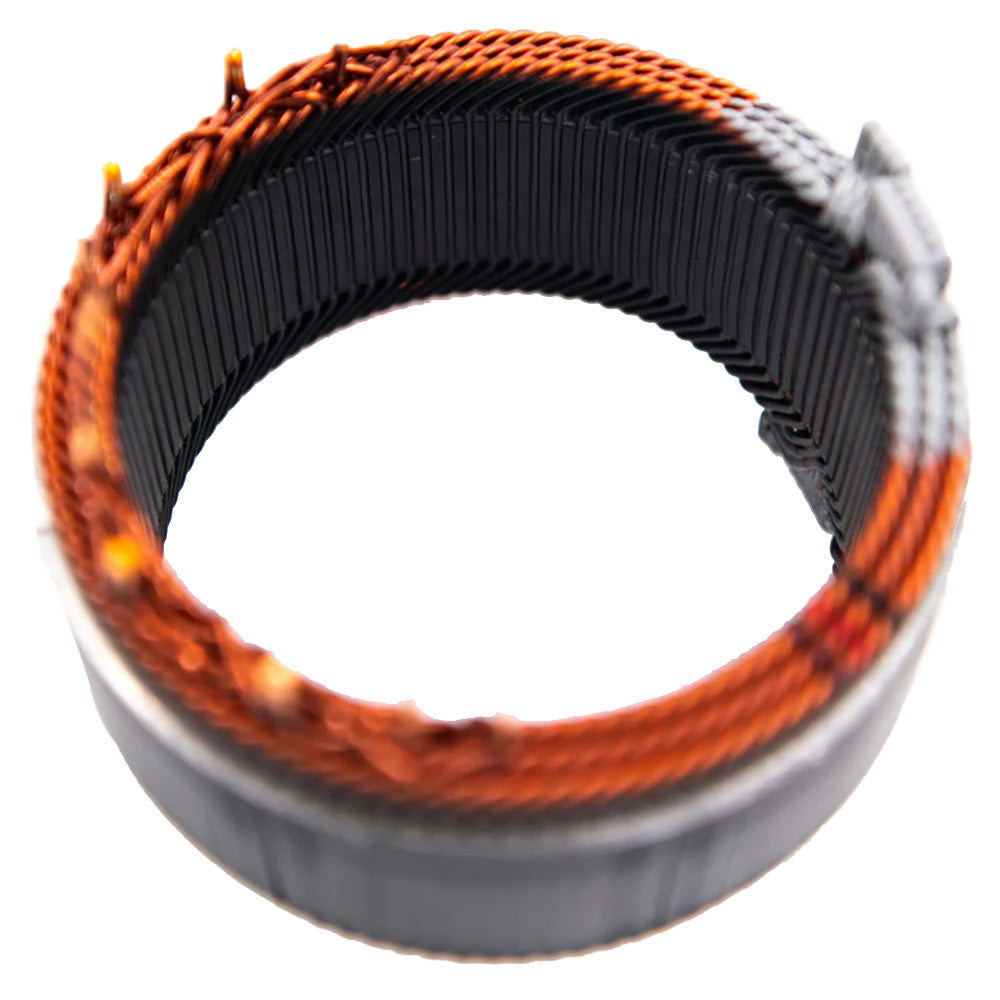

• Stator Size: 138mm
• Frame Size: Large
• Weight: 15.89lbs/7.2kg
• Regulation: External Only
• Finish: (Black) E-coating
• Cut-In RPM: 1,920 Alternator RPM
• Maximum Alt RPM: 19,000
• Battery Post: M8 Thread Post, Side Mount
• Standard Pulley: 49K6 (6-groove, 49mm)
• Pulley Mount: 17mm diameter shaft, 25mm long, threaded M17 x 1.5
• Pulley Hardware: M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included)
• Diodes: 6 positive, 6 negative, 80A Rated, Avalanche
• Max Output (Cold, 9,000 RPM) at 53.5v: 180 Amps - 9,360 Watts – 14.8 kW PTO
• Sustained Cruising Output (Hot, 6,000 RPM) at 53.5v: 138 Amps - 7,383 Watts – 10.5 kW PTO
• Sustained Idle Output (Hot, 2,500 RPM) at 53.5v: 78 Amps 4,173 Watts – 6kW PTO
• Max Continuous Operating Temperature: 100°C / 212°F

Mounting Requirement:

• Must be used on Yanmar Common Rail Engines introduced after 2013 (JH-CR, 3JH40, 4JH45, 4JH57, 4JH80, 4JH110).

Quick Guide (pdf) Brochure (pdf)

Using the ARCO Zeus A8000-48V alternator is easy. First, make sure your engine is a Yanmar Common Rail Engine introduced after 2013, as this alternator is designed for those models. Connect it to your system following the standard procedures for alternator installation. If you want to get the most out of it, you can pair it with the ARCO Zeus Bluetooth Alternator Regulator, especially when charging lithium batteries. When it comes to maintenance, keep an eye on the operating temperature. The alternator is built to run cool, but it's a good idea to make sure it doesn't exceed the maximum continuous operating temperature of 100°C / 212°F. Check the diodes, pulley, and other components regularly for any signs of wear or damage. And since it's made with high - quality OEM components, it should last a long time with proper care. Just remember, using the right pulley hardware and following the technical specifications for mounting and operation will help keep your alternator performing at its best.
